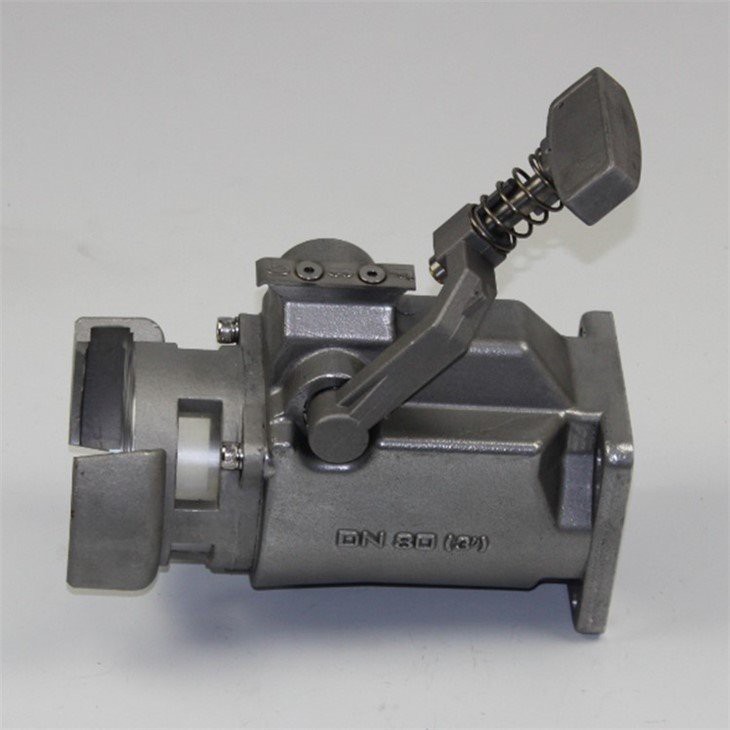

YOJE YJ901 discharging valve is installed on the side of the bottom of the tanker. It is used non-corrosive pipeline open and close control. It is equipped with limit device, safe and reliable with compact structure, light weight, small size and easy to operate. Sight glass is for checking liquids.

Material:

Body: Die-cast aluminum

Shaft: Stainless steel

Seal: NBR

Spring: Steel

Hardware: Stainless steel

Technical data and packing data

Item	YJ901	YJ902
Size	3"	2 1/2"
Working pressure	0.3MPa
Operating method	Mechanical
Connection mode	Flanged
Temperature range	-20~70℃
Medium	Diesel, Gasoline, Kerosene
Packing size	60x33x51 cm
Net weight	22KGS	23KGS
Gross weight	24KGS	25KGS
Packing	6pcs/carton	6pcs/carton

Perolo valve Feature:

1. Die-cast aluminum structure, with strength, anodized.

2. Delivery cap valves are suitable for gravity unloading of fuels tank pipes.

3. Easy to check the flow through the sight glass.

4. Using Niyitegeka type structure and easy to connect.

5. Simple and fast coupling.
